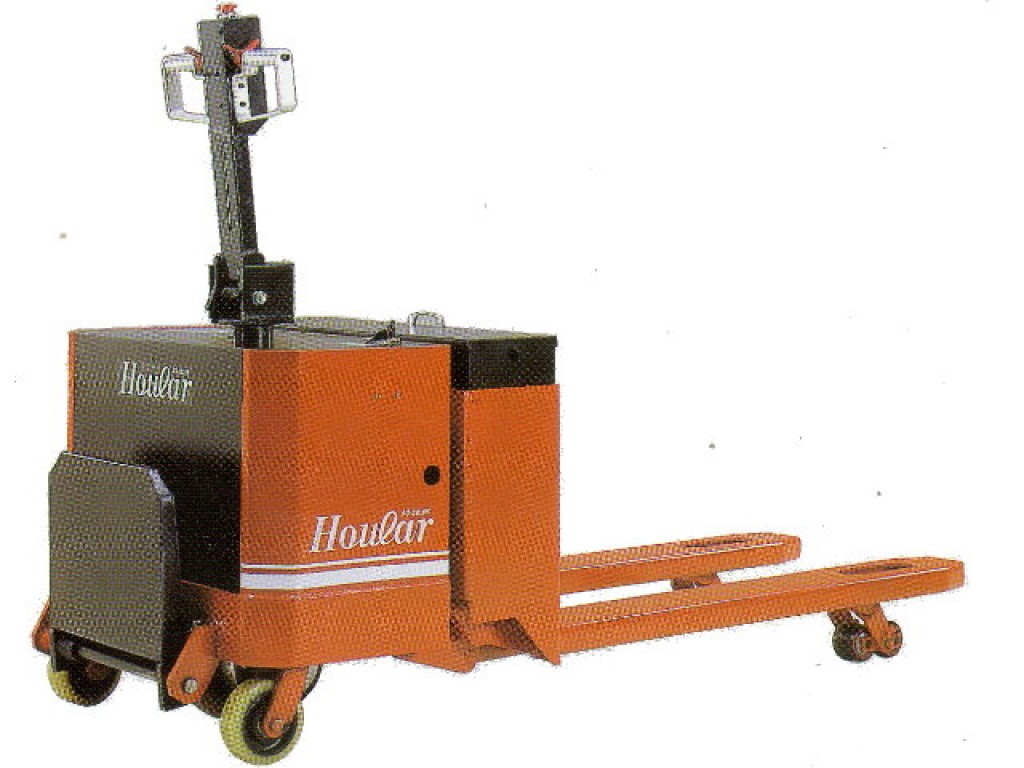

Stand-On Electric Pallet Truck

Type	Main
Introduction	1. The easy mentanence DC system offers quick response, accurate control, impact structure, excellent performance, longer battery service life. 2. Dual robust lifting cylinders, connecting the right and left of truck frame with a synchronous con-rod, ensures stably lifting and falling even under unbalance loading. 3. The unique suspension Driving Floating Adjustable system design, ensures the truck less vibration, stable, no tilt while turning in high speed, guarantees the accurate operator’s operating handle freely and easily with full load, and could adjust operating force of handle to ease operator according to various workplace. 4. Easy-Touch emergency plug mounted at up-right side on truck frame help operator take immediate action for any emergency
Post Date	2013-04-30
Update	2015-02-17

Stand-On Electric Pallet Truck
Model designation		ST-2.0T	ST-2.5T	ST-3.0T
Load capacity (kg)		2000	2500	3000
Lift height (mm)		85-205	85-205	85-205
		Low Profile Type	Low Profile Type	Low Profile Type
		65-180	65-180	65-180
Fork dimensions(mm)	Fork length	1220(1070)	1220(1070)	1220(1070)
Fork dimensions(mm)	Fork spread	685(520)	685(520)	685(520)
Overall length (mm)		1970(1820)	1970(1820)	1970(1820)
Max. height of tiller arm (mm)		810	810	810
Truck Height (mm)		1380	1380	1380
Travel Speed	Unladen	4.3 km/h	5.0 km/h	3.8 km/h
Travel Speed	Laden	3.2 km/h	4.2 km/h	4.5 km/h
Service brake		Electromagnetic	Electromagnetic	Electromagnetic
Drive motor (kW)		1.0	1.3	1.6
Lift motor (kW)		2.0	2.0	3.0
Charger spec.		24V30A	24V30A	24V40A
Tyre size, operator side		PUΦ250x80W	PUΦ250x80W	PUΦ250x80W
Tyre size, balance wheels		PUΦ150x50W	PUΦ150x50W	PUΦ150x50W
Tyre size, load side		PUΦ76x65W	PUΦ76x65W	PUΦ76x65W
Battery voltage/rated capacity (5h)		24V180A/5H	24V180A/5H	24V240A/5H
Service weight (kg)		600	650	700
