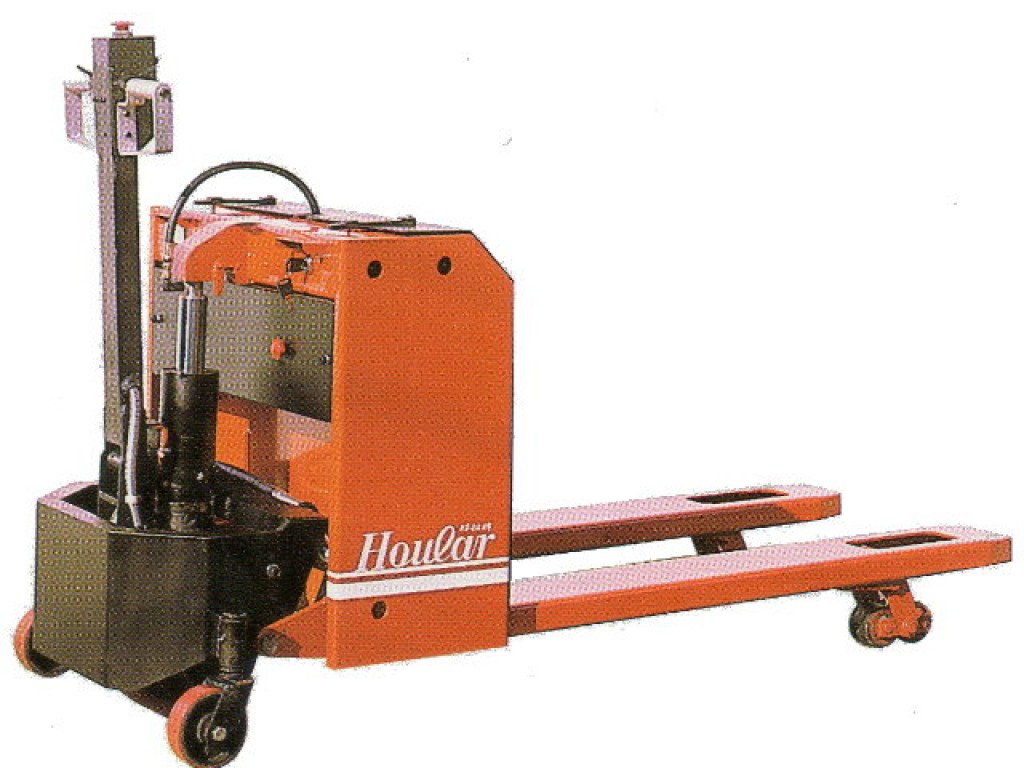

Padestrian Pallet Truck
|
|
Pedestrian Pallet Truck | |||||
Model designation | HO-1.5T | HO-2.0T | HO-2.5T | HO-3.0T | |
Load capacity (kg) | 1500 | 2000 | 2500 | 3000 | |
Lift height (mm) | 85-205 Standard | 85-205 Standard | 85-205 Standard | 85-205 Standard | |
65-180 Low profile | 65-180 Low profile | 65-180 Low profile | 65-180 Low profile | ||
Fork dimensions(mm) | Fork length | 1220(1070) | 1220(1070) | 1220(1070) | 1220(1070) |
Fork spread | 685(520) | 685(520) | 685(520) | 685(520) | |
Overall length (mm) | 1920(1770) | 1920(1770) | 1920(1770) | 1920(1770) | |
Overall width (mm) | 760 | 760 | 760 | 760 | |
Max. height of tiller arm (mm) | 1200 | 1200 | 1200 | 1200 | |
Travel speed | unladen | 4.0 km/h | 4.3 km/h | 4.3 km/h | 5.0 km/h |
| laden | 3.0 km/h | 3.2 km/h | 3.2 km/h | 4.2 km/h |
Service brake | Electromagnetic | Electromagnetic | Electromagnetic | Electromagnetic | |
Drive motor (kW) | 0.7 | 1.2 | 1.2 | 1.3 | |
Lift motor (kW) | 1.5 | 2.0 | 2.0 | 3.0 | |
Charger spec. | 24V-25A | 24V-25A | 24V-25A | 24V-25A | |
Tyre size, operator side | PUΦ210x70W | PUΦ250x80W | PUΦ250x80W | PUΦ250x80W | |
Tyre size, balance wheels | Optional | PUΦ130x40W | PUΦ130x40W | PUΦ130x40W | |
Tyre size, load side | PUΦ85x60W | PUΦ76x65W | PUΦ76x65W | PUΦ76x65W | |
Battery voltage/rated capacity (5h) | 24V-60A/5H | 24V-130A/5H | 24V-130A/5H | 24V-130A/5H | |
Service weight (kg) | 205 | 370 | 390 | 430 | |
